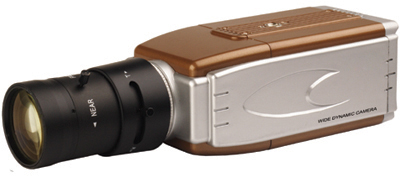

| Product Name: |
WIDE DYNAMIC CAMERA |
| Model No: |
K-580 |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model£ºK-580
Category£º WIDE DYNAMIC CAMERA
Summary£º1¡¢1/3 SONY SS3 high resolution 540TVL
2¡¢Excellent Ultra WDR Performance
3¡¢Minimal blooming and vertical smearless,
under the strong backlight
4¡¢OSD setup
5¡¢Digital Noise Reduction(DNR)
6¡¢Color/B/W switch
7¡¢Natural color reproduction and excellent image quality
Features£º
|
Model : |
K-580 |
|
Image Sensor |
1/3' DPS sensor |
|
Effective Pixels |
720£¨H)X 540(V) |
|
Resolution |
Horizontal £º540 TV Line Vertical :460TVL |
|
Signal System |
PAL/NTSC |
|
S/N Ratio |
More than 50dB |
|
Dynamic Range |
101dB Max 120dB/ 17 Bit |
|
White Balance |
ATW xtnd/ATW normal/ATW Desat/AWB/Manual |
|
Control |
OSD menu |
|
Minimum Illumination |
Color : 0.6 Lux(F1.2); Slow Shutter : 0.08Lux(F1.2) |
|
Gain Control |
Low/ Medium /High /Custom |
|
White Balance Range |
2000Kto 11£¬000K |
|
Video Output |
1.0-1.2vp(Composiste Video Output ,£©,75Ohm Terminated |
|
Auto Iris Lens |
DC /Video Selectable |
|
Lens Mount |
C/CS Mount |
|
Gamma adjustable |
adjustable |
|
Sync.System |
adjustable |
|
Operating Temperature |
-10¡æ~+ 50¡æ RH95%MAX |
|
Power Requirement |
12V DC /24V AC |
|
Power Consumption |
2W/3W |
|
Dimensions£¨mm £©/weight £¨g£© |
121£¨L£©¡Á65£¨W£©¡Á62£¨H £©mm 500g | | |
|
|
|
|
|
|
|
