| Product Name: |

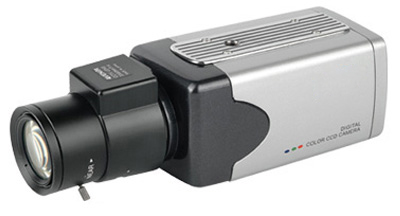

SUPER EXVIEW CCD CAMERA |
| Model No: |
K-515CF |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model£ºK-515CF
Category£º COLOR CCD CAMERA-SUPER EXVIEW CCD CAMERA
Summary£º1¡¢1/3 SONY SUPER Exview
2¡¢Color B/W Switchable
Features£º
|
Model : |
K-515CF |
|
Image Sensor : |
1/3¡å SONY Super HAD CCD |
|
Effective Pixels : |
PAL:752(H)¡Á582(V) NTSC:768(H)¡Á494(V) |
|
Sensing Area : |
4.8mm¡Á3.6mm |
|
Signal System |
PAL/NTSC |
|
Horizontal Resolution |
480 TV Line |
|
Lens Mount |
C/CSMount (Mount optional ) |
|
Minimum Illmination |
0.003Lux/F1.2 |
|
Gain Control |
on /off Switchable |
|
Back Light Compensation: |
|
|
Electronic Shutter : |
|
|
Shutter Speed : |
1/50(1/60)¡ª¡ª1/100,000(s) |
|
Auto Iris Lens : |
VIDEO/DCSwitchment |
|
White Balance : |
Auto Tracking White Balance |
|
S/N Ratio: |
More than 48dB (off ) |
|
Auto color B/W : |
Auto |
|
Snyc.System: |
Internal |
|
Video Outpput : |
1.0Vp-p,75¦¸(BNC) |
|
Power Requirement : |
DC12V/500mA |
|
Power Consumption : |
Less than 2.8W |
|
Video output |
VIDEO OUT ( BNC ) |
|
Demensions (mm)
Weight (g) |
115¡Á58¡Á50 250g | | |
|
|
|
|
|
|
|
