| Product Name: |

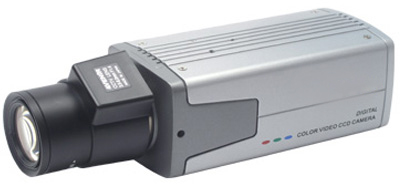

COLOR CCD CAMERA |
| Model No: |
K-515EB |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-515EB
Category: COLOR CCD CAMERA
Summary:1/3 SONYSUPER HAD CCD CAMERA
Features:
|
Model : |
K-515EB |
|
Image Sensor |
1/3" SONY Super HAD CCD |
|
Effective Pixels |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
|
Sensing Area |
4.8mm×3.6mm |
|
Signal System |
PAL/NTSC |
|
Horizontal Resolution : |
420 TV Line |
|
Lens Mounrt : |
C/CSMount (Mount optional ) |
|
Minimum Illmination : |
0.05Lux/F1.2 |
|
Gain Control : |
on/off switchable |
|
Back Light Compensation : |
|
|
Electronic Shutter : |
|
|
Shutter Speed : |
1/50(1/60)——1/100,000(s) |
|
Auto Iris Lens : |
VIDEO/DCSwitchable |
|
White Balance : |
Auto Tracking White Balance |
|
S/N Ratio: |
More than 48db (AGC OFF) |
|
Auto color ,B/W |
Auto |
|
Snyc.System : |
Internal |
|
Video Output : |
1.0Vp-p,75O |
|
Power Requirement : |
DC12V |
|
Power Consumption : |
Less than 2.8W |
|
Video Outpput : |
VIDEO OUT ( BNC ) |
|
Demensions (mm)/
Weight (g): |
115×58×50 250g | | |
|
|
|
|
|
