| Product Name: |

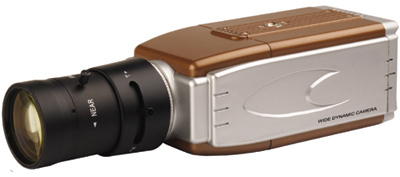

COLOR HIGH RESOLUTION CAMERA |
| Model No: |
K-515TM |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model£ºK-515TM
Category£º COLOR CCD CAMERA-COLOR HIGH RESOLUTION CAMERA
Summary£º1/3 SONY CCD , DSP Technolgy , No color Rolling , High Sensitivity
Features£º
|
Model : |
K-515TM |
|
Image Sensor |
1/3¡å SONY Super HAD CCD |
|
Effective Pixels |
PAL:752(H)¡Á582(V) NTSC:768(H)¡Á494(V) |
|
Sensing Area |
4.8mm¡Á3.6mm |
|
S/N Ratio |
PAL/NTSC |
|
Horizontal Resolution |
520 TV Line |
|
Lens Mount |
C/CS Mount |
|
Minimum Illumination : |
F2.0,0.2Lux |
|
OSD Menu |
Chinese /English / Japanese /Korea optional |
|
Gain Control |
High/Low (6Db-40Db) |
|
Back Light Compensation |
on /off (64AREA) |
|
Electronic Shuter |
on/off |
|
Shutter Speed |
1/50£¨1/60£©¡ª¡ª1/100,000£¨s£© |
|
Auto Iris Lens |
VIDEO/DCSwitchable |
|
White Balance |
Auto (ATW¡¢AWB¡¢IXED¡¢MANUAL)Switchable |
|
S/N Ratio |
More than 48db (AGC OFF) |
|
Video Output |
1.0Vp-p,75¦¸£¨BNC£© |
|
Power Requirement |
DC12V/500mA |
|
Power Consumption |
Less than 2.8W |
|
Video Output : |
VIDEO OUT ( BNC ) |
|
Dimensions £¨mm £©/
Weight £¨g£©: |
127.5¡Á63¡Á52 | | |
|
|
|
|
|
